Micro BGA (Micro Ball Grid Array)

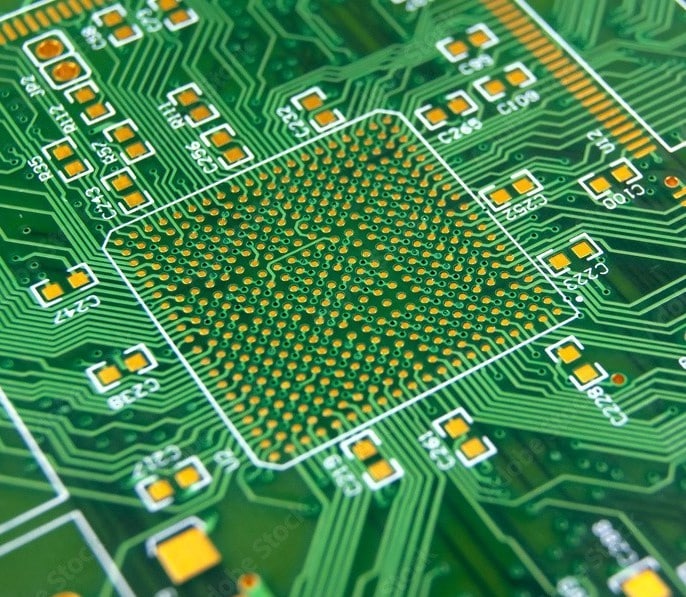

Micro BGA (Micro Ball Grid Array) is an advanced packaging technology used in modern PCB design to accommodate high-density, high-performance components in compact spaces. A Micro BGA package features an array of tiny solder balls (balls of solder placed in a grid pattern) under the component, which connect directly to the PCB, making it ideal for applications where space and signal integrity are critical.
Key Benefits
- High-Density Design: Micro BGA packages can hold a large number of connections in a very small area, making them perfect for miniaturized and complex electronic devices.
- Improved Electrical Performance: The direct contact between the solder balls and the PCB helps reduce signal path length, minimizing resistance and improving signal integrity, especially in high-speed applications.
- Efficient Heat Dissipation: The ball grid array structure promotes better thermal management by allowing heat to dissipate more effectively through the board, enhancing the performance and reliability of the component.
- Reliability: Micro BGAs offer strong mechanical connections that resist physical stress and vibration, making them durable in demanding environments
Micro BGA technology is essential for designs that are aiming to create compact, high-performance, and reliable electronic devices. It enables the integration of cutting-edge components without sacrificing performance, making it the go-to choice for today’s miniaturized, high-speed electronics.
