Flex-rigid PCBs

Rigid boards joined by flexible layers in one part. No connectors, no cables, and up to 16 layers, all made in our UK factory.

At a glance

Copper layersTwo layer flex with rigid sections, or multilayer flex-rigid up to 16 layers
Thickness0.2 to 4.8 mm. Multilayer flex-rigid 0.2 to 3.2 mm
Flex materialPolyimide film with covercoat
Rigid materialFR4, bonded to the flex with cast adhesive
Largest board660 x 533 mm
Surface finishesLead-free HASL, tin-lead HASL, ENIG and immersion silver in our own factory. ENEPIG through a subcontractor
Solder resistGreen, red, blue, black, white, yellow or clear
TestEvery board electrically tested on flying probe testers

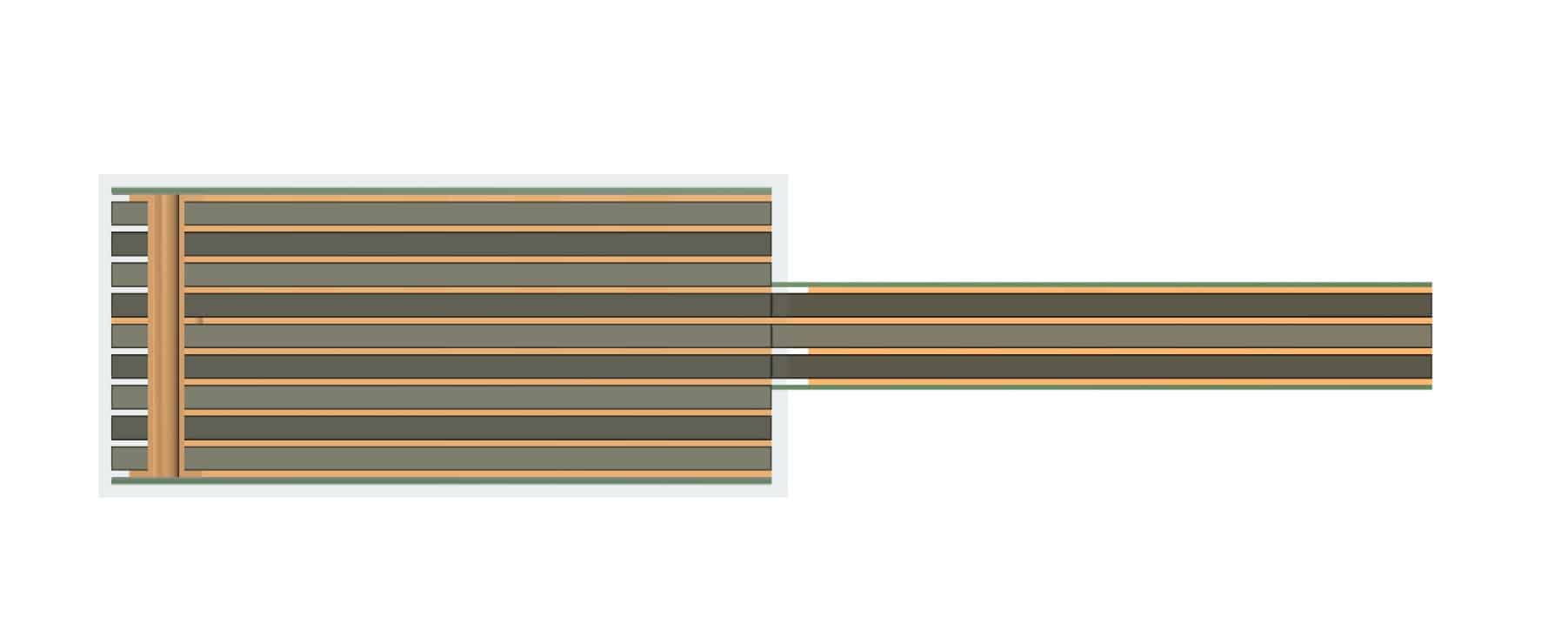

RigidRigidFlex: bends here

The flexible layers run through the rigid sections, so the join is part of the board.

How we make it

The flexible layers are made first and covered. Rigid material is then bonded to them, with the adhesive profiled so it stays out of the area that has to bend. The assembly is drilled, plated and finished like a multilayer, and the rigid material over the bend is removed at the end.

Good for

  • Folded assemblies in small enclosures
  • Products that see vibration, where connectors are a weak point
  • Aerospace, defence and medical equipment
  • Replacing a set of boards and cables with one part

Design tips

  • Keep plated holes back from the join between rigid and flex.
  • Use hatched copper instead of solid planes where the flex bends.
  • Stagger tracks on opposite sides of the flex.
  • Involve us early. The layer build decides the whole process.

Go further

Check this board type against what we build in the Engineers Hub. Read Flex and flex-rigid in the Knowledge Hub, or see the full Capabilities table.
