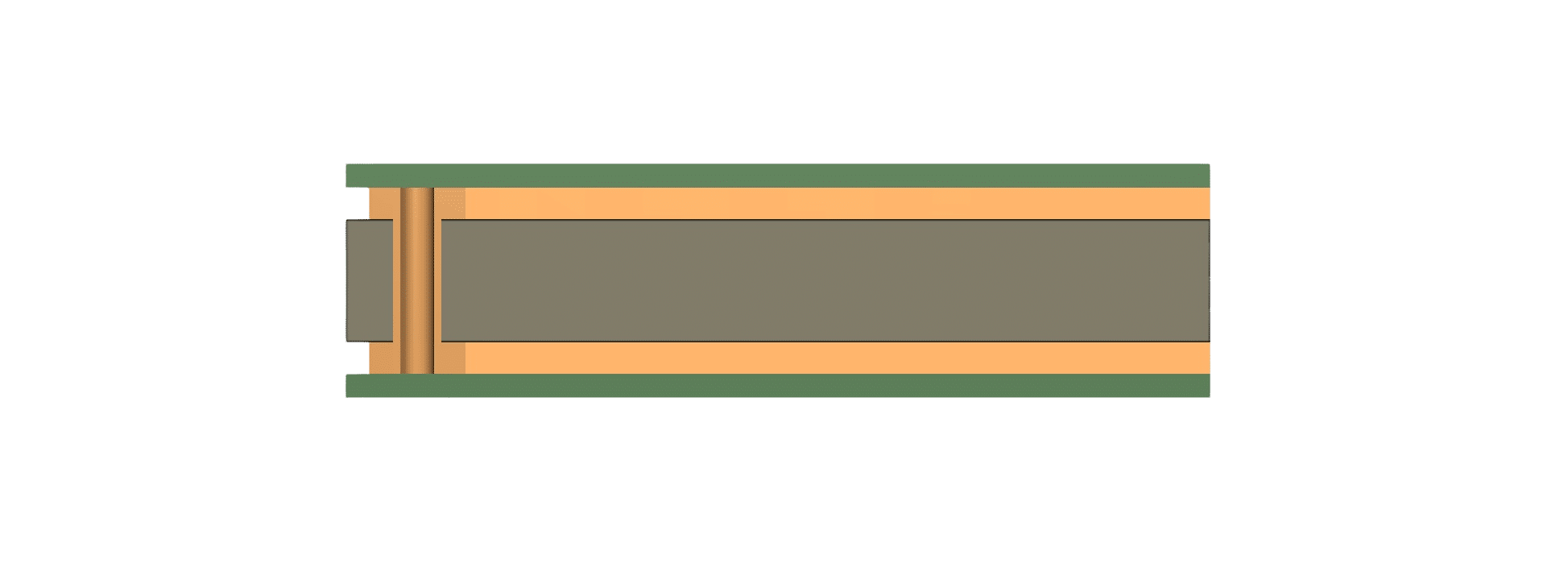

Double-Sided PCB (2-Layer PCB)
Double-sided PCBs are more versatile than single-sided boards, featuring two layers of conductive material, one on each side. This allows for more complex and densely packed circuits. Components can be mounted on both sides, with connections made through vias—small holes that allow traces to pass from one side of the board to the other.
Key Features
- Two Copper Layers: Increased space for routing complex circuits.
- Vias for Interconnections: Enhanced design flexibility through top and bottom layer connections.
- Moderate Cost: More affordable than multilayer PCBs but offers greater capability than single-sided designs.
Common Applications
- Industrial control systems
- Power supplies and automotive electronics
- LED lighting, HVAC, and instrumentation systems
Double-sided PCBs provide a balance between performance and cost, making them a popular choice for a wide range of medium-complexity electronics.
