Copper Fill

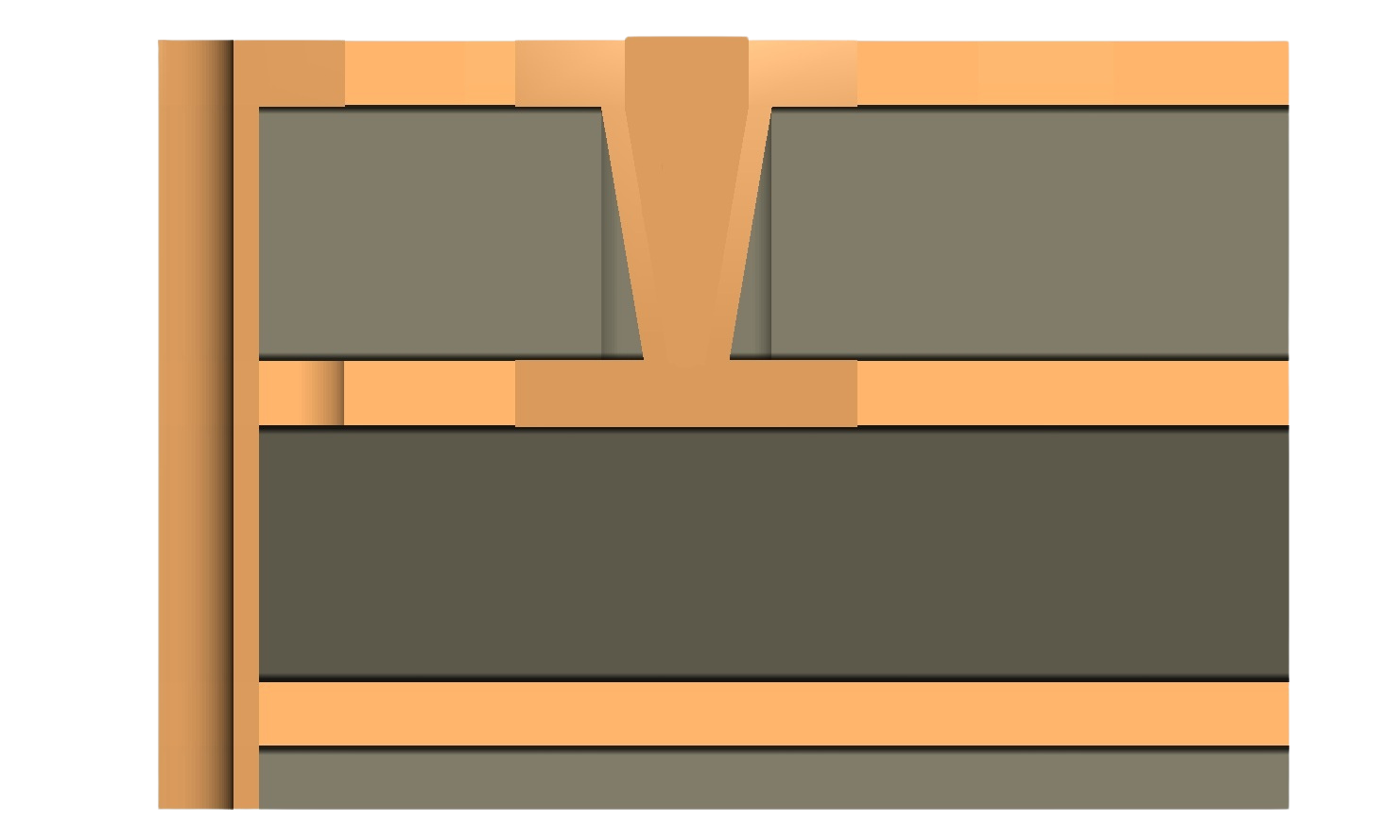

Copper Fill is a critical PCB manufacturing process where vias are filled with copper. This process enhances the electrical and thermal performance of the PCB by improving heat dissipation and signal integrity. Copper-filled vias are particularly important for high-power and high-speed applications, as they allow for better conductivity and reduced impedance across multiple layers of the PCB.
Key Benefits
- Superior Electrical Performance: Filling vias with copper significantly reduces impedance, improving signal flow and minimizing signal loss in high-frequency circuits.
- Efficient Thermal Management: Copper’s excellent thermal conductivity helps dissipate heat from high-power components, ensuring stable performance in heat-sensitive applications.
- Increased Structural Integrity: The copper-filled vias reinforce the mechanical strength of the PCB, preventing warping or damage from thermal cycling and mechanical stress.
- Improved Reliability: Ensures better connections between layers, making the board more robust in applications where long-term reliability is essential.
- Flat Pad for Soldering: Copper fill helps create a smooth, flat surface, which is ideal for BGA and SMT via-in-pad designs, improving solderability and ensuring a more reliable connection.
Copper Fill is essential for applications where thermal performance, electrical reliability, and structural integrity are critical. By incorporating copper-filled vias into your design, you can ensure better performance in high-power, high-speed, and high-frequency applications, ultimately leading to longer-lasting and more efficient PCBs.
